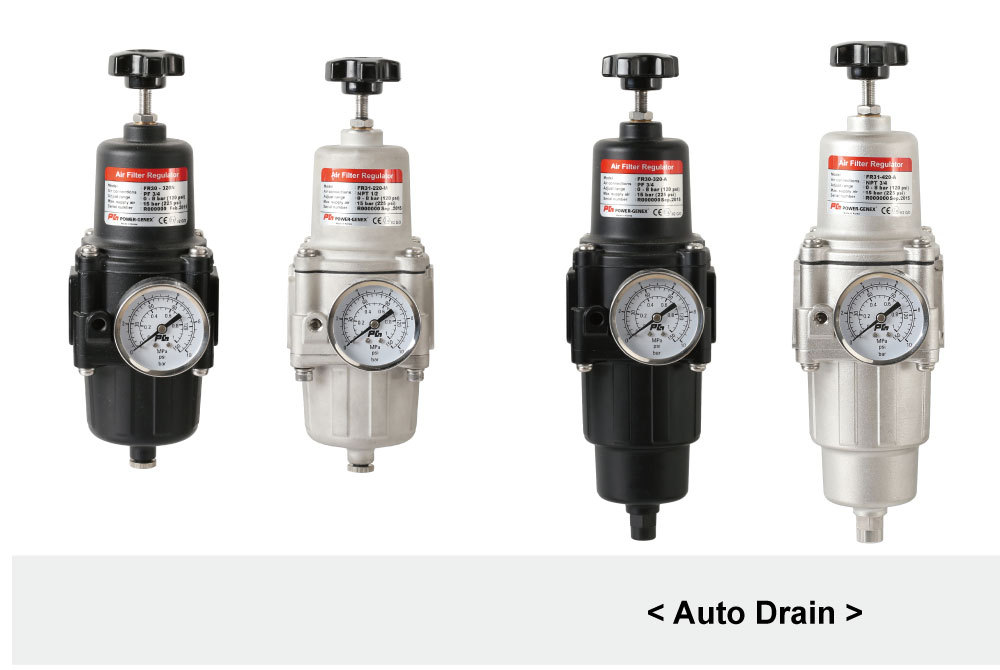

FR30
Introduction
Valve air unit essential to provide clean and dry supply air to valve positioners, solenoid valves and pneumatic actuators
Features
- Rugged aluminum die-cast housing
- Excellent tability and rpeatability
- Stable setting pressure
- High capacity with 5 micron filter
- Self-relief function to balance output and setting pressures
- High flow capacity
Specifications
Model | FR30 | FR31 |
Port Size | PT(Rc) 1/2 , NPT 1/2 PT(Rc) 3/4 , NPT 3/4 | NPT 1/2 NPT 3/4 |
Fluid | AIR | |
Output Pressure Range | 0 - 4 bar (60 psi) / 0 - 8 bar (120 psi) | |
Max. Supply Pressure | Max. 15 bar (225 psi) | |
Operating and Fluid Temperature | -20 - +70℃ | |
Supply Air | Filtered compressed, dry and non oiled air | |
Gauge Port Size | PT (Rc) 1/8 | |
Filteration | 5 micon | |
Housing Material | Aluminum die-cast | Stainless steel 316 |
Pressure Gauge Material | Stainless steel | |
Weight | 0.65 kg | 1.4 kg |
How to order
FR | Body Materail | - | Port Size | Output Pressure Range | Operating Temp. | - | Option |
Description | Code |
Body Material | 30 : Aluminum die-cast 31 : Stainless steel 316 |
Port Size | 1 : PT(Rc) 1/2 2 : NPT 1/2 4 : NPT 3/4 |
Output Pressure Range | 1 : 0 - 4 Bar (60 psi) 2 : 0 - 8 Bar (120 psi) |
Operating Temperature | 0 : -20 - +70℃ 1 : -20 - +120℃ 2 : -40 - +80℃ |
Options | M : Manual drain A : Auto drain |
