LSB-1000

CATALOGS MANUALS APPROVAL DRAWINGS

Introduction

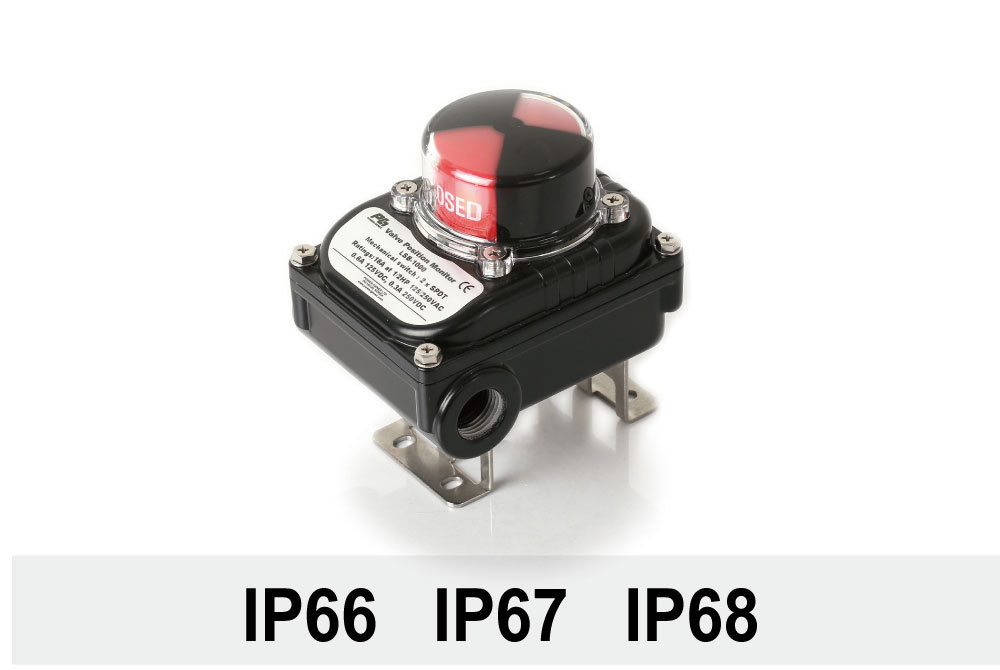

Robust valve position monitor with a good recognizable beacon, various switches and feedback options

Features

- Weatherproof to IP67 (optionally IP68)
- Rugged aluminum die-cast housing
- Various switches and sensors (available with Honeywell / P&F)
- NAMUR mounting shaft or fork lever shaft adjustable for a non-NAMUR pneumatic actuator

Option

- 2 x SPDT mechanical limit switch
- 4 x SPDT mechanical limit switch
- 2 x P&F proximity sensor
- 2 x Hermetically-sealed proximity Sensors
- IP68

Specifications

 LSB-1000
Protection ClassIP67 / IP68
Operating Temperature

-40 ~ +100℃

Electrical ConnectionsPF 3/4, NPT 3/4, PF 1/2, NPT 1/2

Body Material / Painting

Aluminum die-cast / powder-painted
Weight0.8 kg


How to order

LSB - 1

Body
Material

Switches
/
Seonsors

Position
Transmitter

Explosion
Proof

Beacon
/
Indicator

Electrical
Connections

Number of
Electrical
Connections

Feedback
Shaft

Mounting
Bracket





Code

Body
Material

0 : Alumium die-cast

Switches
/
Sensors

Mechanical Switches
  0 : 2 x SPDT
  2 : 4 x SPDT

P&F Sensors
  6 :  2 x NJ2-V3-N

Autonics Sensors
  8 : 2 x PSN17-5D

Honeywell Switches
  J : 2 x SPDT

Hermetically-sealed proximity  Sensors
  C : 2 x MS-20

Position
Transmitter

0 : None
1 : Position Transmitter
    (4 ~ 20mA 24VDC)

Explosion
Proof

7 : Weatherproof IP67
8 : Weatherproof IP68

Beacon
/
Indicator

N : None
A : Beacon Indicator 90
D : Other flow direction
     indicator (L or T port)




Code

Electrical
Connections

A : PF 3/4
B : NPT 3/4
C : PF 1/2
D : NPT 1/2
E : M20 X 1.5
H : PG 13.5

Number
of
Electrical
Connections

2 : 2 psc

Feedback
Shaft

Rotary Type
N : NAMUR shaft
F : Fork lever

Linear Type
A : 10 ~ 40mm
B : 10 ~ 80mm
C : 80 ~ 150mm
D : 80 ~ 200mm

Mounting
Bracket

Rotary Type
N : None
1 : 30 x 80 x 20
2 : 30 x 80 x 30
3 : 30 x 130 x 30
4 : 30 x 130 x 50
M : Multi-size Bracket
