VALVE POSITION MONITOR
LSB-3000
Introduction
Explosion proof robust valve position monitor with a good recognizable beacon, bottom indicator, various switches and feedback options
Features
- Flameproof ATEX / IECEx / KC Exd IIC
- Intrinsic safety ATEX / IECEx / KC Ex ia IIC

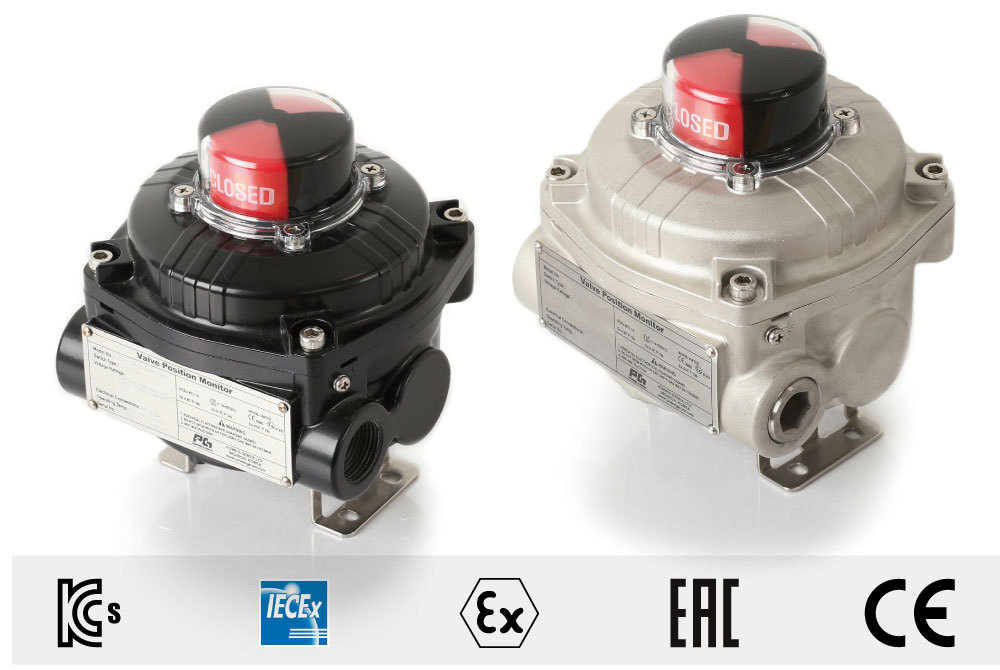

- Rugged aluminum die-cast housing or optionally stainless steel 316 housing

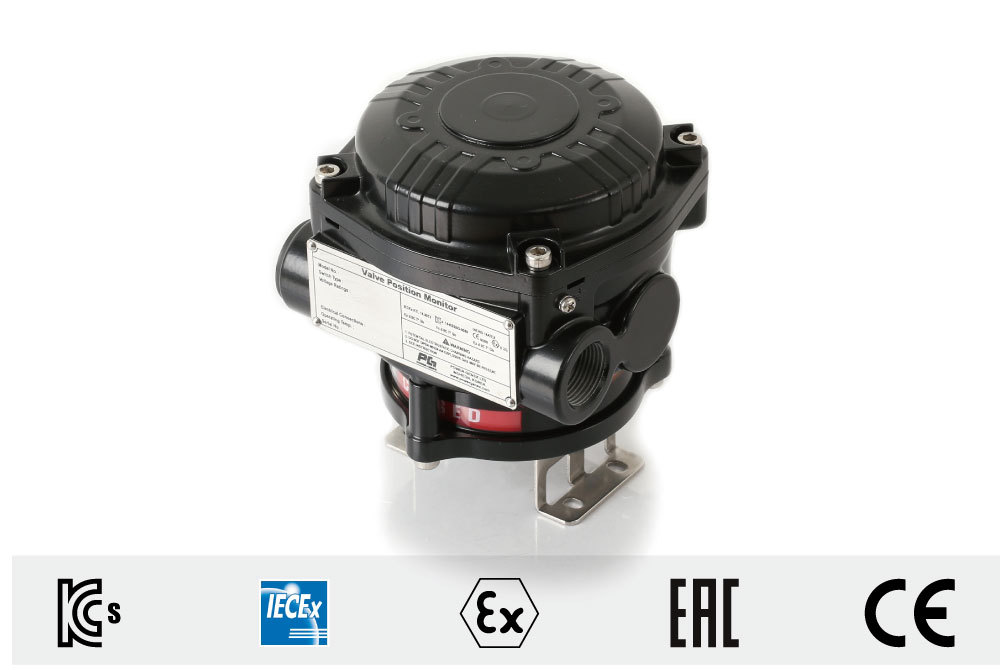

- Optionally dual beacons or bottom indicator
- Various switches and sensors (available with Honeywell / P&F / Westlock / Go switch)
- NAMUR mounting shaft or fork lever shaft adjustable for a non-NAMUR pneumatic actuator
- Rugged aluminum die-cast housing or optionally stainless steel 316 housing

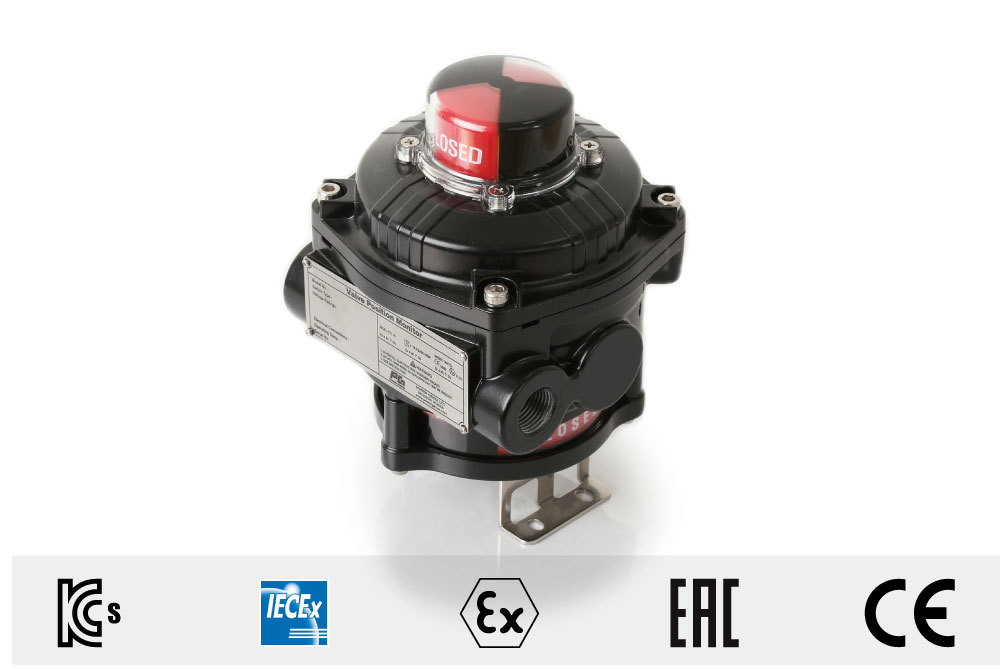

- Optionally dual beacons or bottom indicator
- Various switches and sensors (available with Honeywell / P&F / Westlock / Go switch)
- NAMUR mounting shaft or fork lever shaft adjustable for a non-NAMUR pneumatic actuator
Option
- 4 x SPDT mechanical limit switch
- 2 x P&F proximity sensor
- 2 x Hermetically-sealed proximity sensor
- 4 - 20mA output position transmitter
- IP68
Specifications
| LSB-3000 | |
| Explosion proof / Protection Class | Flameproof Ex d IIC T6/T5/T4, IP67 or IP68 Intrinsic safety Ex ia IIC |
| Operating Temperature | -40 ~ +100℃ |
Electrical Connections | PF 3/4, NPT 3/4, PF 1/2, NPT 1/2, M20 x 1.5 |
Body Material / Painting | Aluminum die-cast / epoxy powder-painted |
| Weight | 0.8 kg |
| LSB-3100 | |
| Explosion proof / Protection Class | Flameproof Ex d IIC T6/T5/T4, IP67 or IP68 Intrinsic safety Ex ia IIC |
| Operating Temperature | -40 ~ +100℃ |
Electrical Connections | NPT 3/4 |
Body Material / Painting | Stainless steel 316/316L |
| Weight | 3.8 kg |
