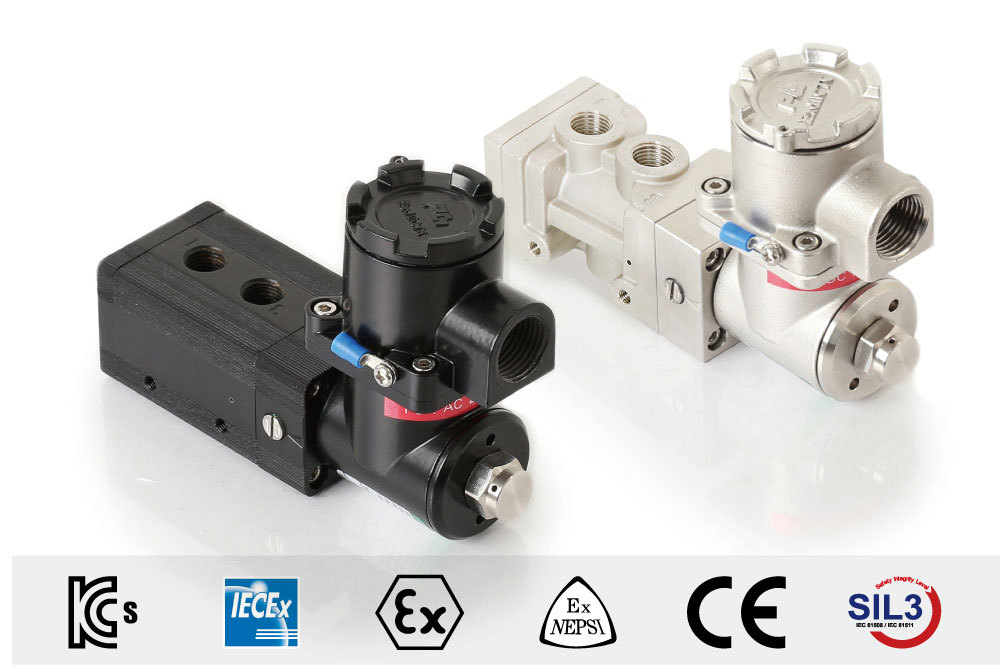

SOLENOID VALVE
ESV-31&32 (3/2WAY)
Introduction
Explosion proof solenoid valve for a confident control in rough working environments
Features
- Rugged aluminum die-cast housing
- Rotatable valve head for optimal mounting
- Screw mounting
- SIL 3
- Flameproof, Ex d IIC T6/T5/T4 (KC IECEx ATEX)
- Dust ignition protection, Ex tb IIIC T85℃/T100℃/T135℃ Db (KC IECEx ATEX)
Specifications
| Operating Air Pressure | 1.5 – 10 kgf/㎠ |
| Air Supply (Max.) | 15 kgf/㎠ |
| Operating Voltage : Current | AC 110V :6.4W AC 220V : 6.8W DC 24V : 3.4 W |
| Voltage Tolerance | ±10% |
| Frequency | 60Hz |
| Explosion Proof Class | Ex d IIC T6/T5/T4 Gb (KC IECEx ATEX) Ex tb IIIC T85℃/T100℃/T135℃ Db (KC IECEx ATEX) |
| Operating Ambient Temperature | -20℃ ~ + 60℃ |
| Flow Capacity (Cv) | 0.9 |
| Mounting Configuration | Screw interface |
| Pneumatic Connections | PT(Rc) 1/4 or NPT 1/4 |
| Electrical Connection | PF(G) 1/2 or NPT 1/2 |
| Coil Insulation Grade | Class F or Class H |
| Duty Cycle | 100% |
| Weight | Aluminum / Aluminum : 0.8 kg Aluminum / SS316 : 1.8 kg SS316 / SS316 : 2.1 kg |
