LSB-7000
Introduction

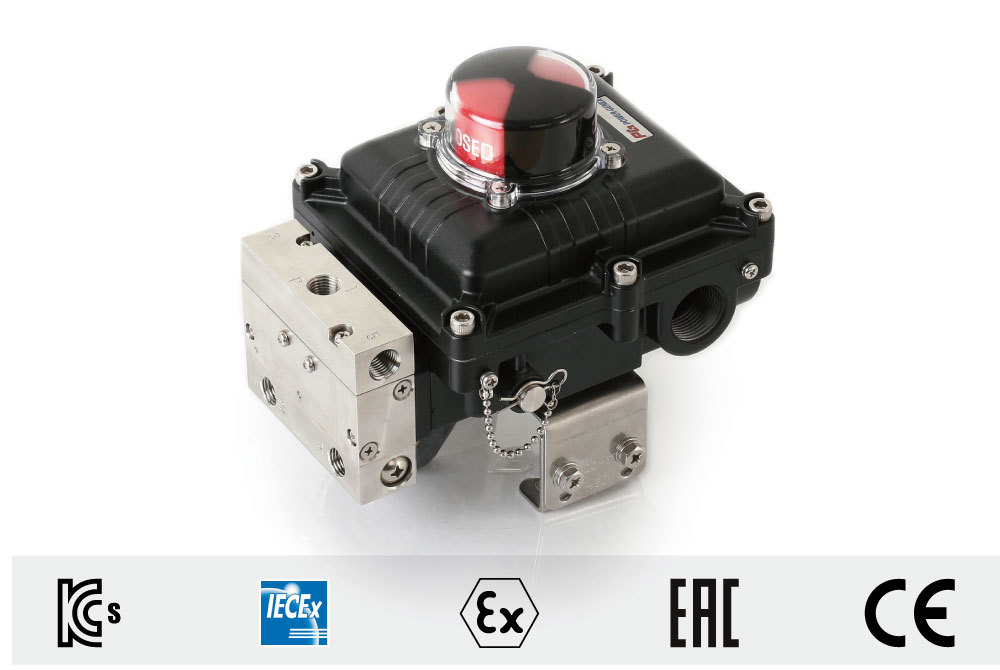

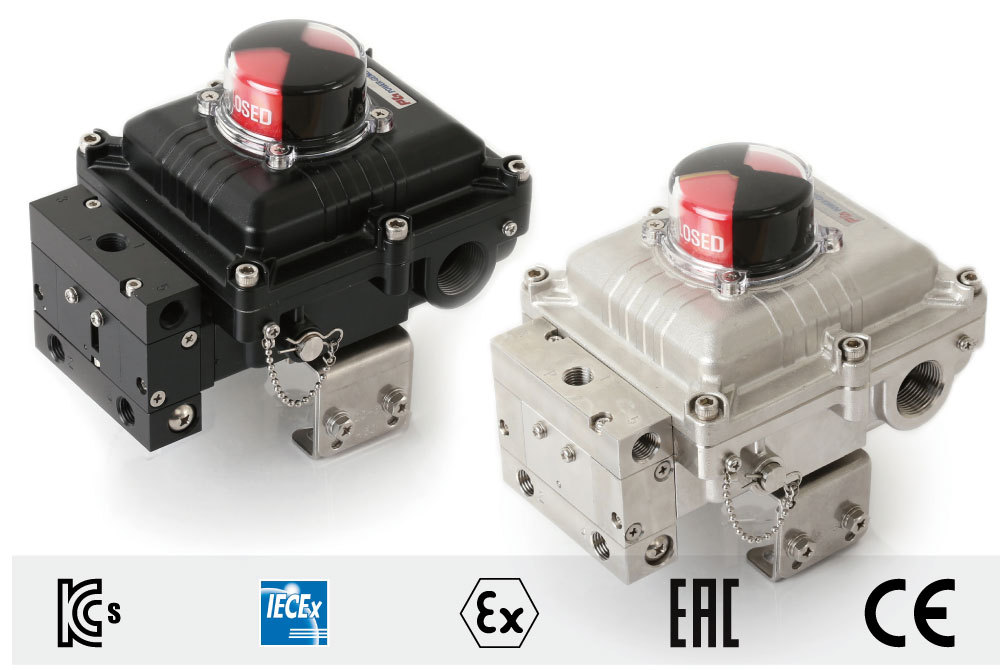

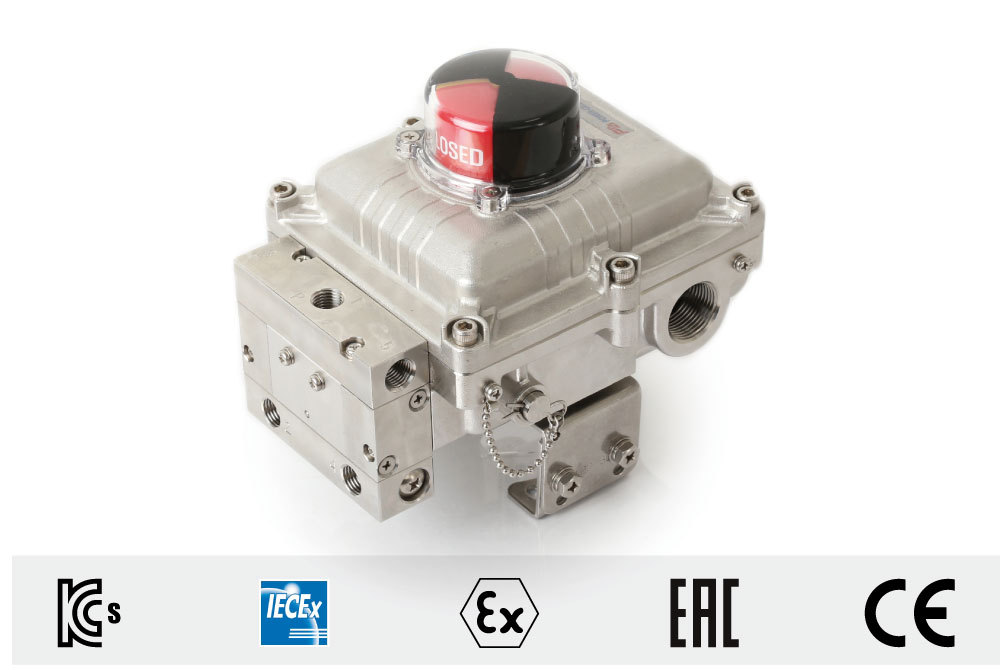

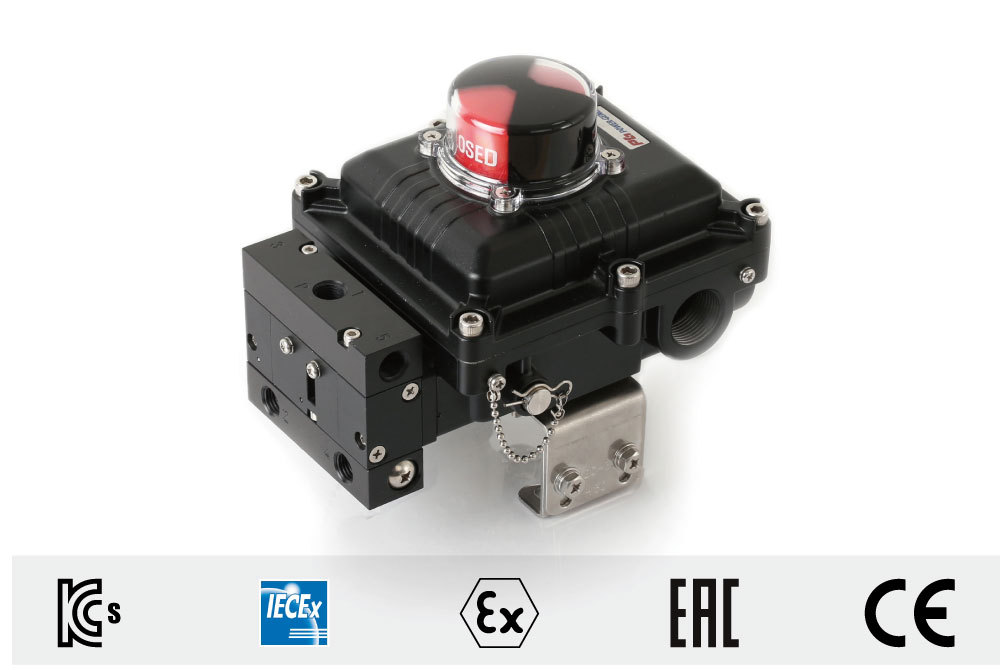

Explosion-proof robust valve position monitor with built-in solenoid and more feedback options designed to provide an outstanding performance under harsh working environments
Features
- Flameproof / explosion-proof enclosure (Exd IIB+H2 T6 IP66)
- Rugged aluminum die-cast housing
- Compact single unit with built-in solenoid valve
- Auto / Manual button easy to convert
- NAMUR mounting shaft or fork lever shaft adjustable for a non-NAMUR pneumatic actuator
Option
- 4 x SPDT mechanical limit switches
- 4 x inductive sensors
- 4-20mA output position transmitter
- SUS316 Solenoid vavle
Specifications
| LSB-7000 | |
| Protection Class | Flameproof ( Ex d IIB+H2 T6, IP67) |
| Operating Air Pressure | 1.5 ~ 10kgf/cm2(single coil) |
| Air Supply(Max.) | Max 15kgf/cm2 |
Solenoide Valve Operating Voltage | 24 VDC / 110 AC / 220 AC |
Solenoide Valve Manual Override | Push Button |
Solenoide Valve Response Time | 25ms |
| Coil Insulation Class | F - Class |
| Operating Temperature | -30 ~ +75℃ |
| Pneumatic Connections | Rc 1/4 or NPT 1/4 |
Electrical Connections | G 3/4, G 1/2, G 1, NPT 3/4, NPT 1/2, NPT 1 |
| Body Material | Aluminum die-cast / powder-painted |
| Weight | 2.5 |
- Mechanical Switches & Inductive Sensor Rating
