LOCK-UP VALVE
› LU

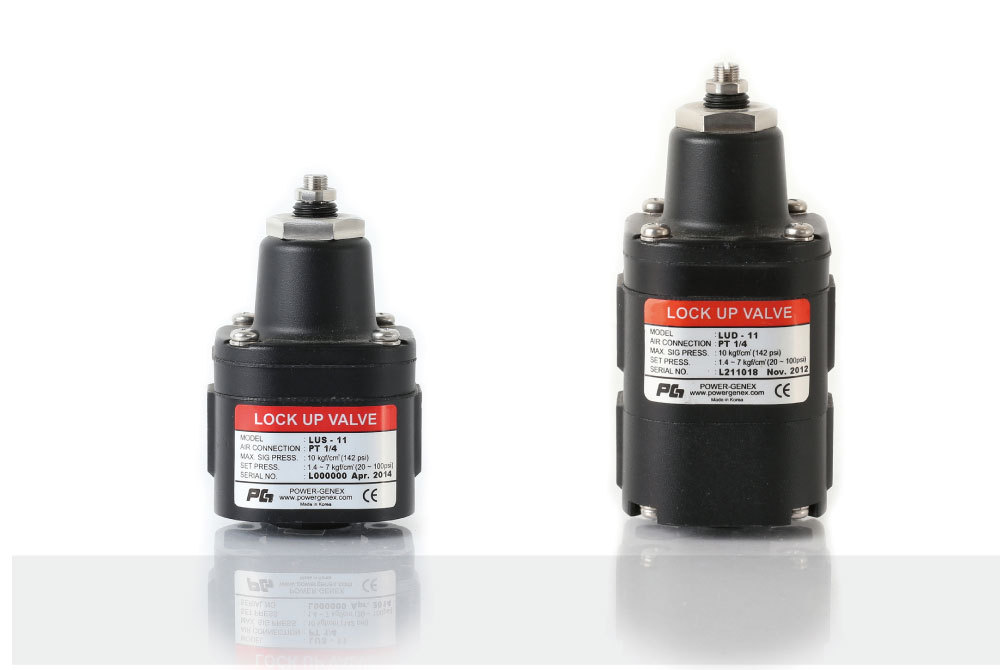

LU
Introduction
Dependable safety valve to retain a set supply air pressure and guarantee a steady process control when a supply air is suddenly failed by accident and its pressure becomes lower than a set pressure
Features
- Rugged aluminum die-cast housing
Option
- Sing / Double
- Rc 1/4, NPT 1/4
Specifications
Model | LU | |
LUS | LUD | |
Proof Pressure | Max 10 kgf/㎠ (150psi) | |
Signal Pressure | 1.4 ~ 7 kgf/㎠ | |
Line Pressure | Max 7 kgf/㎠ (105psi) | |
Flow Capacity(CV) | 0.9 | |
Operating Temperature | -20 ~ +70℃ | |
Connections | PT(Rc) 1/4 / NPT 1/4 | |
Hysterisis | 0.1 kgf/㎠ | |
Body Material | Aluminum die-cast | |
Weight | 0.6 | 0.8 |
How to order
| ||||||||||
|
