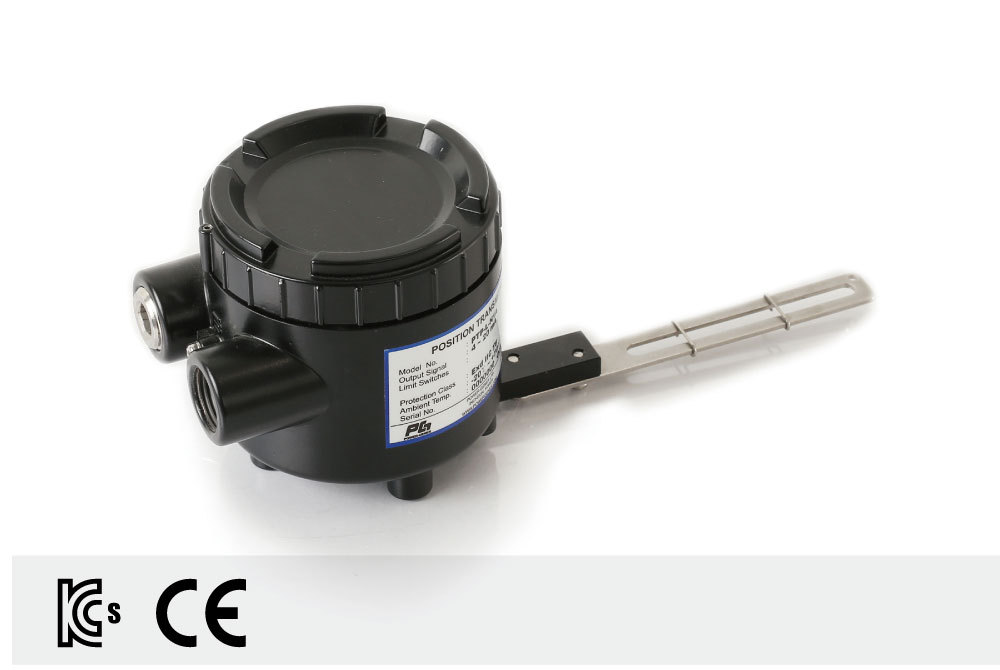

PTP(analog)
Introduction
Explosion proof position transmitter for reliable valve position feedback with 4-20㎃ output signal
Features
- Rugged aluminum die-cast housing
- Optional 2 X SPDT limit switch or 2 X P&F proximity sensor NJ2-V3-N
Specifications
| Model | PTP-L | PTP-R |
| Current Output Signal | 4 - 20㎃, 2-wire | |
| Power Supply Range | 12 - 30 VDC (24 VDC recommendable) | |
| Span Adjustable Angle | 10° - 45° | 0° - 90° |
| Linearity | Within ± 1.0% F.S | |
| Sensitivity | Within ± 0.25% F.S | |
| Hysteresis | Within 1.0% F.S | |
| Operating Ambient Temperature | -20 ~ +70℃ | |
| Explosion Proof Class | Exd IIC T6 (KOSHA Cert. No. 2008-1053-Q1) | |
| Protection Class | IP66 | |
| Electrical Connections | G 1/2 or NPT 1/2 | |
| Weight | 0.9 kg | |
