I/P CONVERTER
› IPC

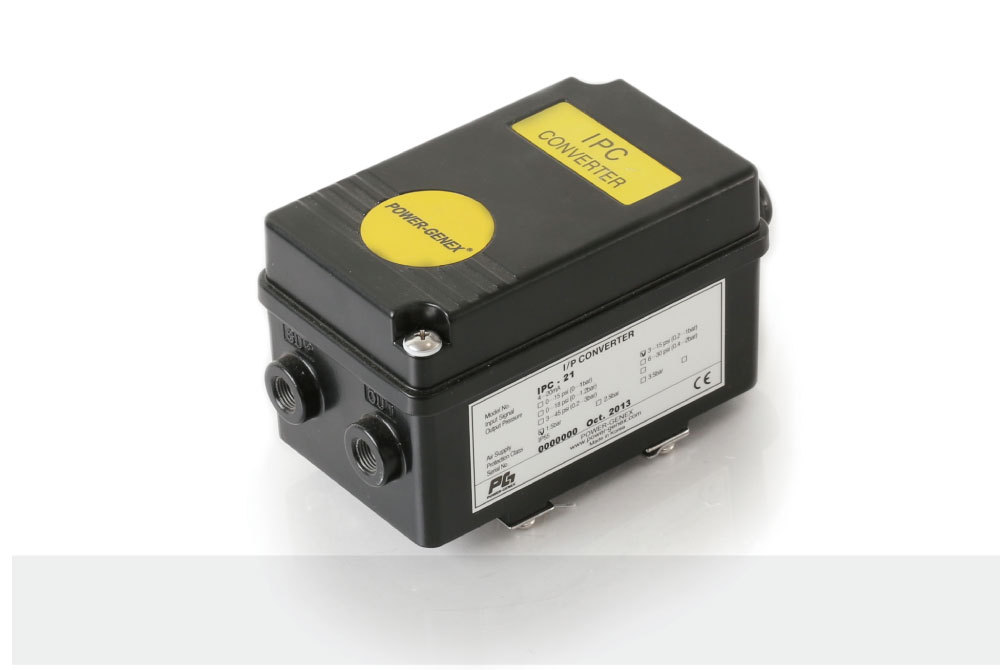

IPC
Introduction
Dynamic valve drive to convert 4~20㎃ current signal to pneumatic output pressure with state-of-the art piezoelectric technology
Features
Rugged aluminum die-cast housing
Precise control performance and high dynamic response
Simple and easy to set
Low air consumption due to piezo electric microvalve
Specifications
| Model | IPC |
| Input signal | 4 ~ 20㎃ @ 24 VDC , 2-wire |
| Output pressure | 0 - 1bar (0 - 15psi) 0.2 - 1bar (3 - 15psi) 0.4 - 2bar (6 - 30psi) 0.2 - 3bar (3 - 45psi) |
| Output characteristics | Linear to input signal |
| Action | Direct |
| tal error | Max. error ±0.3% of span |
| Supply air | Filtered compressed, dry and non-oiled air (up to 5 micron) |
| Operating temperature | -20 ~ +70℃ |
| Protection class | IP55 |
| Impedance | 425 Ω @ 20㎃ |
| Mounting type | Rail (to DIN EN 50022) |
| Pneumatic connections | Rc 1/8 |
| Electrical connections | PG 9 |
| Body Material | Aluminum die-cast |
| Weight | 820 g |
How to order
| Output pressure | Required supply air | Part Number |
| 0 - 1bar (0 - 15psi) | 1.5 bar (23psi) | IPC - 01 |
| 0.2 - 1bar (3 - 15psi) | 1.5 bar (23psi) | IPC - 21 |
| 0.4 - 2bar (6 - 30psi) | 2.5 bar (38psi) | IPC - 42 |
| 0.2 - 3bar (3 - 45psi) | 3.5 bar (53psi) | IPC – 23 |
| Other Pressure | On request |
