CYLINDER POSITIONER
› PPCL (3 - 15psi)

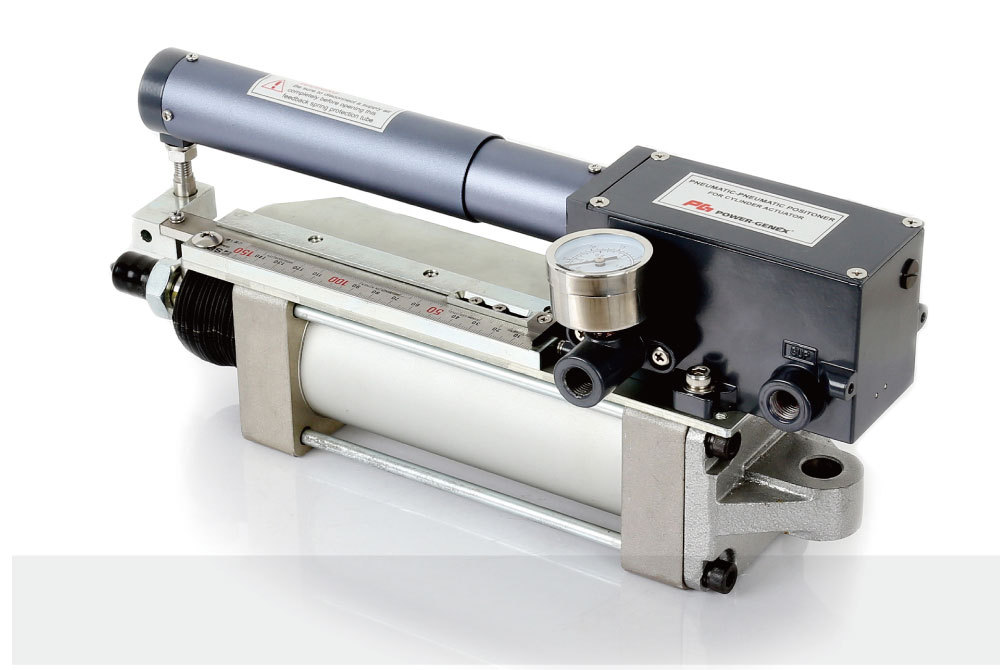

PPCL (3 - 15psi)
Introduction
pneumatic-pneumatic positioner ideally designed and optimized for cylinder actuator and guaranteeing precise and stable performance with cylinder actuator
Features
- Easy to set
- Compact
- Precise and stable performance
- Suitable for a wide application
Specifications
| Input signal | 3 - 15psiI (0.2 - 1bar) |
| Air supply | 3 - 7bar (100psi) free of oil, water, and moisture |
| Standard stroke | 30mm - 300mm |
| Pneumatic connections | Rc 1/4 or 1/4NPT |
| Protection class | IP55 |
| Ambient temperature | -20 ~ +70℃ |
| Pressure gauge | Stainless steel |
| Output characteristics | Linear |
| Linearity | Within ± 1.0% F.S |
| Sensitivity | Within ± 0.5% F.S |
| hysteresis | Within 1.0% F.S |
| Repeatability | Within ± 0.5% F.S |
| Air consumption | 5 LPM (Sup. 1.4 bar) |
| Material | Aluminum die-cast |
| Weight | 1.5 kg |
